A Lamstar toy example/tutorial

Note: what appears here is what I prepared as a sort of correctness test for a the reward/punishment engine of a Lamstar-type neural network implementation I did for my Master's Thesis. (Zurich, Switzerland, 2001 Feb 22)

[Click here to download the full project (Visual C++ 6.0 project)]


The Lamstar network is an artificial neural network architecture (developed by Professor Daniel Graupe, UIC), which is based on the self-organizing modules and on the powerful concept of the link-weights between neurons; it is capable of a considerable amount of generalization and operates correctly even with datasets which have missing attributes. It is designed to store a large amount of data and yet be fast and accurate.

I need an implementation of this network for my thesis, which is better described in another page of this site (maybe ;-), what you see here is an embryo of the final network and a 'toy' testing infrastructure around it.

The implementation of the Lamstar network here given is limited (some of the theoretical possibilities of the network, such as fast retrieval via weight channelling were not implemented). The example itself (the recognition of whether a 2D point is inside a circle or not) is trivial and in practice does not make use of most of the interesting features provided by the network, it was originally designed to see whether the network was running correctly or not.

2500 points in the unity square centered in the origin are pseudo-randomly generated (the random generator is not inizialized -- a simple way to initialize it always in the same way) in order to obtain always the same pseudo-random sequence, therefore not biasing the results when different structural parameters are used. The task of the network (once trained) is to recognize whether a 2d given point is inside or outside the circle which has center in the origin and radius = 0.5. The network is trained with the first 1250 points, the second 1250 are used for the test.

A critical parameter, which determines how silimar a new data should be near to an already-known one for the neuron which represents it to be reused, is changed four times, assuming the following values: 0.05, 0.1, 0.2, 0.5. When this parameter is low the network is more accurate because almost every new data causes a new neuron to be created inside the network to represent the new data. On the other side, the network becomes bigger, slower and exploit less its generalization capabilities. Increasing this parameter makes the network reuse more frequently the neuron it already has, thus resulting in a faster, smaller network which can be less accurate.

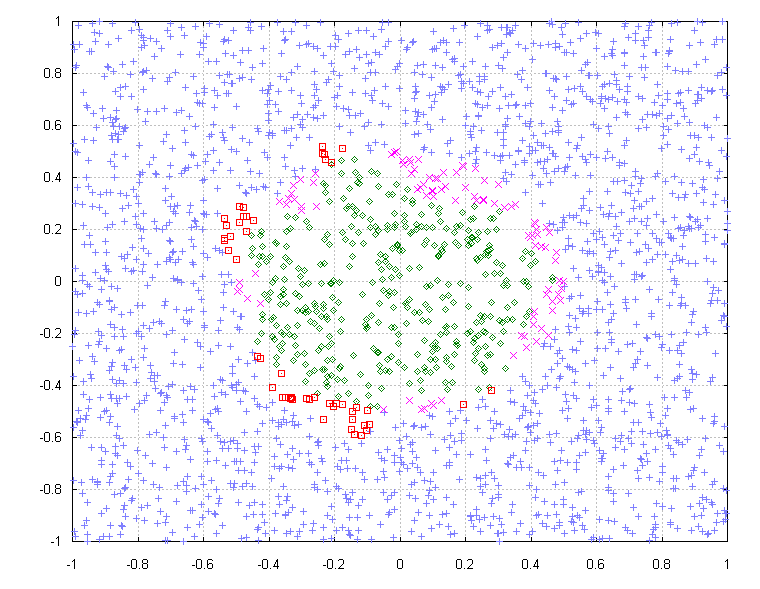

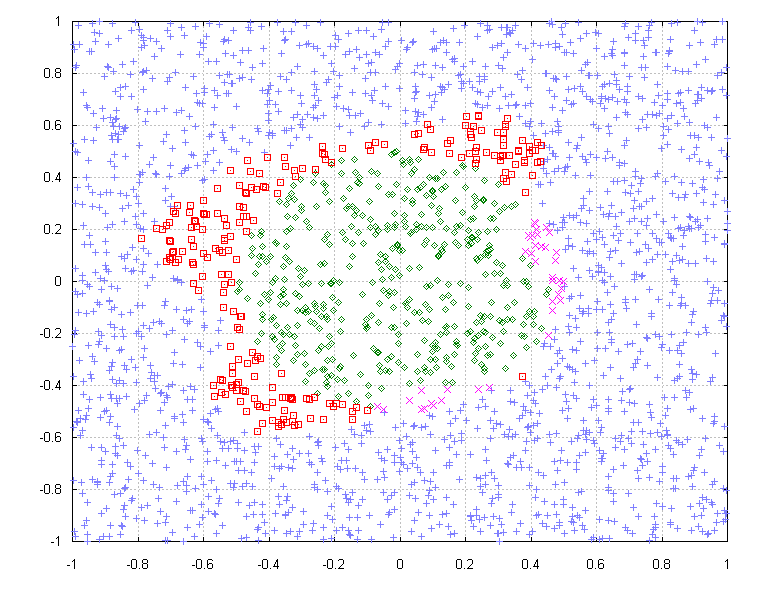

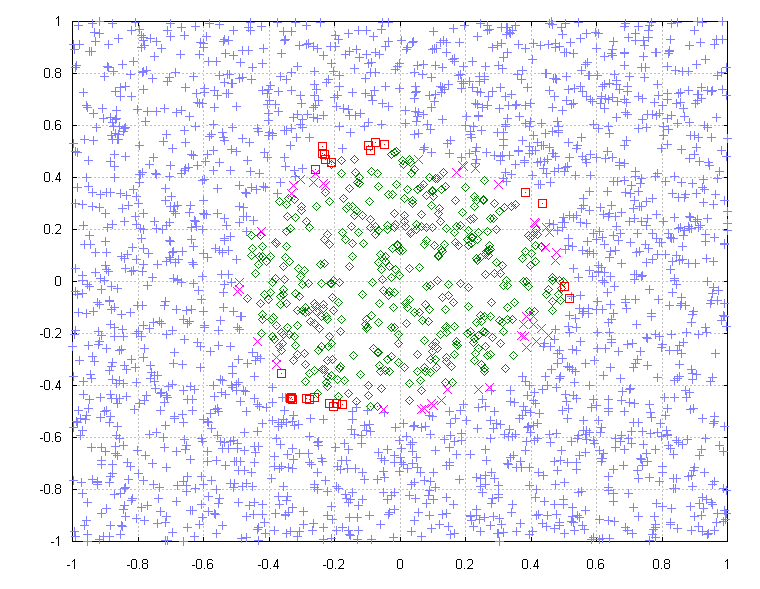

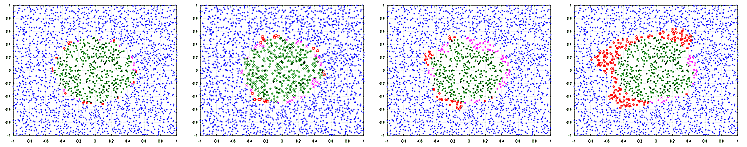

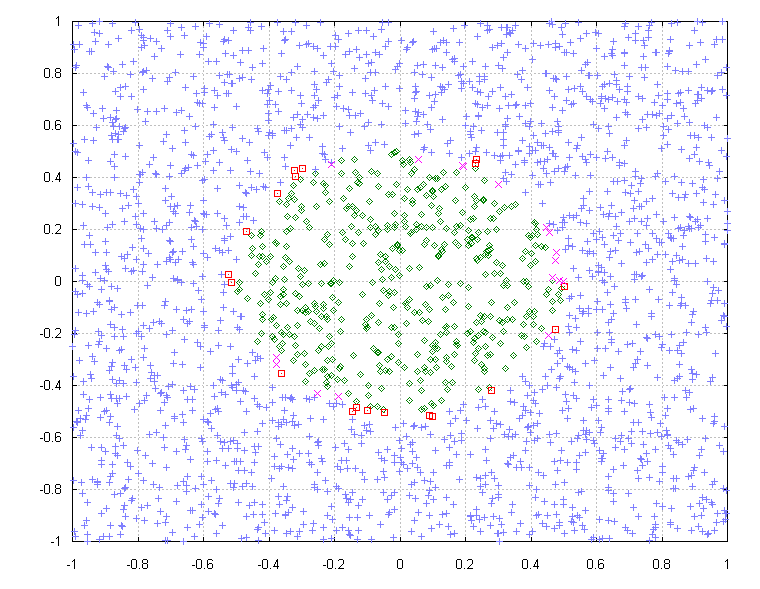

The graphs represent the error the number and distribution of the mistakes when the four values of the parameter are changed.

  • the green diamonds represent points inside the circle and correctly identified;
  • the blue plus signs represent points outside the circle and correctly identified;
  • the magenta crosses represent point outside the circle which were incorrectly identified as belonging to the circle;
  • the red squares represent points inside the circle which were incorrectly identified as not belonging to the circle;
Further studies on this example, like the number of used neurons as a function of the parameter described above, are left to the reader as an exercise.
